Infinium MethylationEPIC v2.0 Kit

Robust methylation profiling microarray with extensive coverage of CpG islands, genes, and enhancers. Use for epigenome-wide association studies. 続きを読む...
製品の選択
What size kit do I need?
EPIC v2.0 Kits

Inf MethylationEPIC V2.0 Kit (8 Spl)

20087706

価格



Inf MethylationEPIC V2.0 Kit (16 Spl)

20087707

価格



Inf MethylationEPIC V2.0 Kit (32 Spl)

20087708

価格



Inf MethylationEPIC V2.0 Kit (96 Spl)

20087709

価格



EPIC v2.0 Semi-Custom Kits

Inf MethylationEPIC-8+ v2.0 Kit (16 Spl)

20097750

Inf MethylationEPIC-8+ v2.0 Kit (32 Spl)

20097751

Inf MethylationEPIC-8+ v2.0 Kit (96 Spl)

20097752


Services

Infinium® Assay: An Introduction – Customer Site

20015273

製品のハイライト

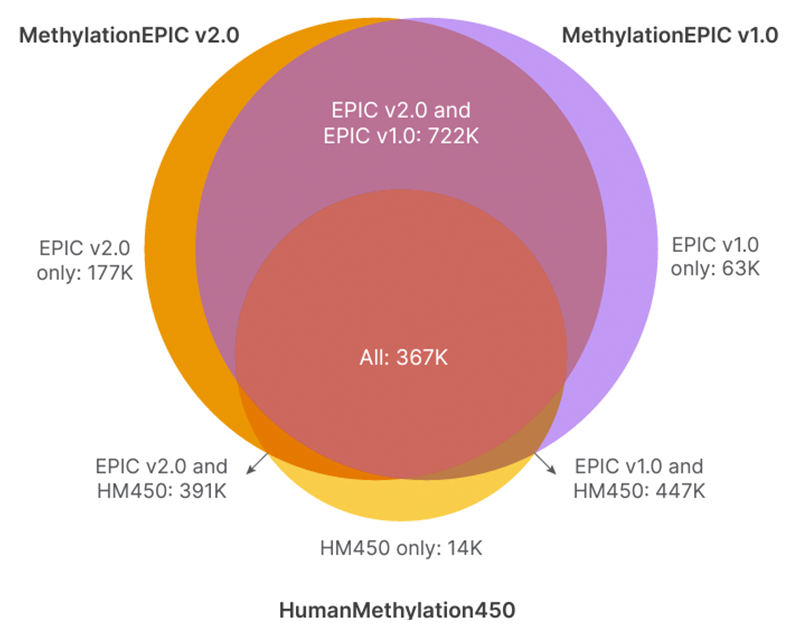

The Infinium MethylationEPIC v2.0 BeadChip Kit is a genome-wide methylation screening tool that targets over 935,000 CpG sites in the most biologically significant regions of the human methylome, while maximizing backwards compatibility with it's predecessor, MethylationEPIC v1.0. The array maintains the ability to quantitatively interrogate CpGs across the genome at single-nucleotide resolution, while providing highly accurate and precise methylation measurements independently of read depth. Multiple DNA sample types, including those isolated from FFPE, can be analyzed using the streamlined, user-friendly Infinium Methylation assay. Due to the scalability and low total cost per sample compared with alternative methods, large cohorts can be screened using MethylationEPIC v2.0 to discover powerful biological insights into disease mechanisms.

Genome-Wide, cutting-edge content

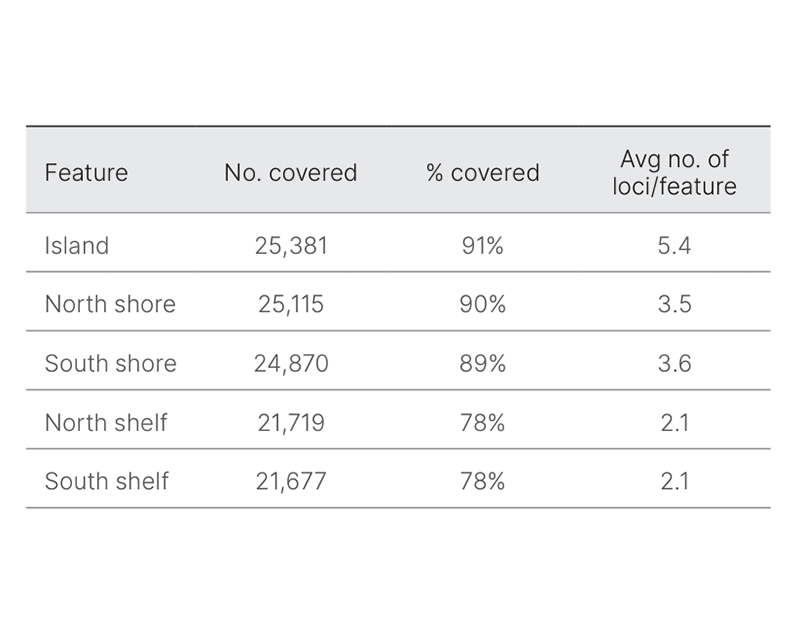

Guided by expert evaluations of EPIC v1.0, poor-performing probes have been removed and replaced with cutting-edge content to enable greater discovery power for epigenetics studies. The additional 186,000 CpGs on EPIC v2.0 target enhancers and super-enhancers, additional CTCF-binding sites, CNV detection regions, CpG islands insufficiently covered on EPIC v1.0, and common cancer driver mutations. The updated v2.0 beadchip also profiles open regions of chromatin identified by ATAC-Seq and ChIP-seq experiments. A more extensive description of the content covered by MethylationEPIC v2.0 is described in the product datasheet.

Trusted technology

For over a decade, Illumina methylation BeadChips have powered groundbreaking studies in the field of epigenetics, with most published epigenome-wide association studies (EWAS) to date completed on MethylationEPIC or its predecessor, HumanMethylation450. As a result, researchers can benefit from the vast amount of public methylation array data in data repositories like the Gene Expression Omnibus (GEO) or The Cancer Genome Atlas (TCGA). In addition, machine-learning classifiers for tumors and other diseases have been built upon methylation array data and are easily accessible with the methylation BeadChip data format.

Simple data analysis

MethylationEPIC v2.0 data analysis is supported by the GenomeStudio Methylation Module. GenomeStudio Software enables straightforward primary analysis and quality control. It features intuitive visualization tools that enable researchers to view data in a single graph, such as heat maps, scatter plots, and line plots. For advanced downstream analysis, many free packages in the R software framework enable normalization and differential analysis of methylation data (SeSAMe, minfi, etc.). Instructional videos and comprehensive user guides explain the use of these data analysis packages.

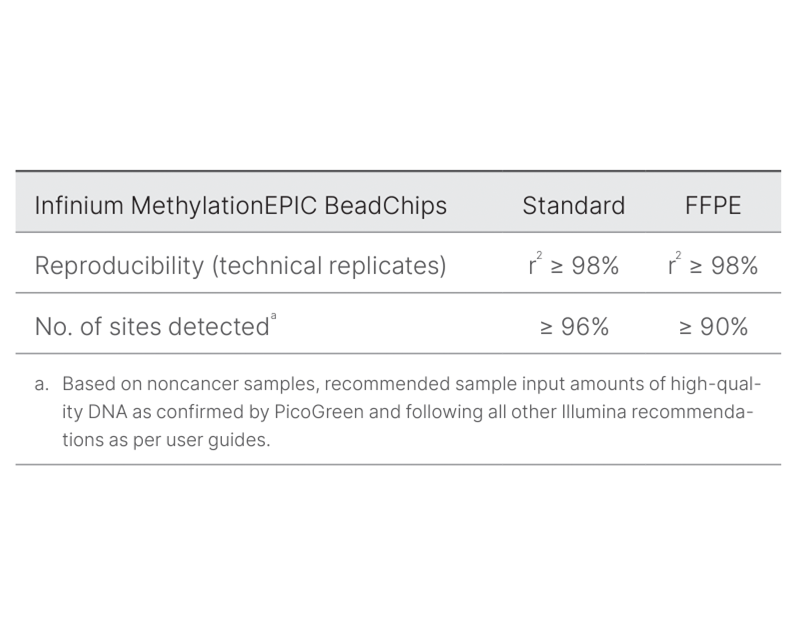

Compatible with multiple sample types, including FFPE

The robustness of the Infinium Methylation assay lends itself to obtaining high data quality out of FFPE tissue samples. FFPE compatibility is critical in studying cancer and enables studies to be completed on large biorepositories of tumors. The Infinium assay is also compatible with fresh/frozen tissue, whole blood, buccal cells, cfDNA, saliva, and other sample types.

よく一緒に購入される製品

仕様

Method-Specific Workflow Example



Customer Stories

Find the Right Microarray

Use our interactive tool to find the right Illumina microarray for your project type and method of interest.

Access Tool
Find the Right Microarray

Related Products
